About this service
What are commercial 3D models and measured floor plans?
A measured building survey produces accurate 2D floor plans, elevations and sections, and where required a 3D model in formats such as Revit, IFC or SketchUp. Surveys are typically captured with laser scanners, total stations or photogrammetry, and drawn to recognised standards including the RICS Professional Statement on Measured Surveys of Land, Buildings and Utilities, and IPMS for floor area measurement. Commercial property typically uses NIA, GIA and IPMS 3 for office space.
Owners commission measured surveys before refurbishment, planning applications, lease plans, sales marketing, dilapidations, space planning, or as the geometric input for SBEM energy modelling. There is no statutory frequency, but the survey should reflect the building as it currently stands. A re-survey is sensible after any structural alteration, change of use, or where existing drawings are over five years old or of unverified provenance.
The deliverable is a CAD package: dimensioned PDF plans for issue, native DWG or RVT for designers, and optionally a federated 3D model with a point cloud for clash detection or facilities management. For SBEM and BRUKL work, the floor plans become the geometry input to the energy model, so accurate net and gross internal areas, glazing percentages and ceiling heights save significant time at assessment stage.
Why this matters: Inaccurate or out of date floor plans can invalidate lease plans, trigger disputes over rent on a per-square-metre basis, undermine SBEM and EPC accuracy, and cause planning applications to be refused or delayed when submitted geometry does not match site conditions.

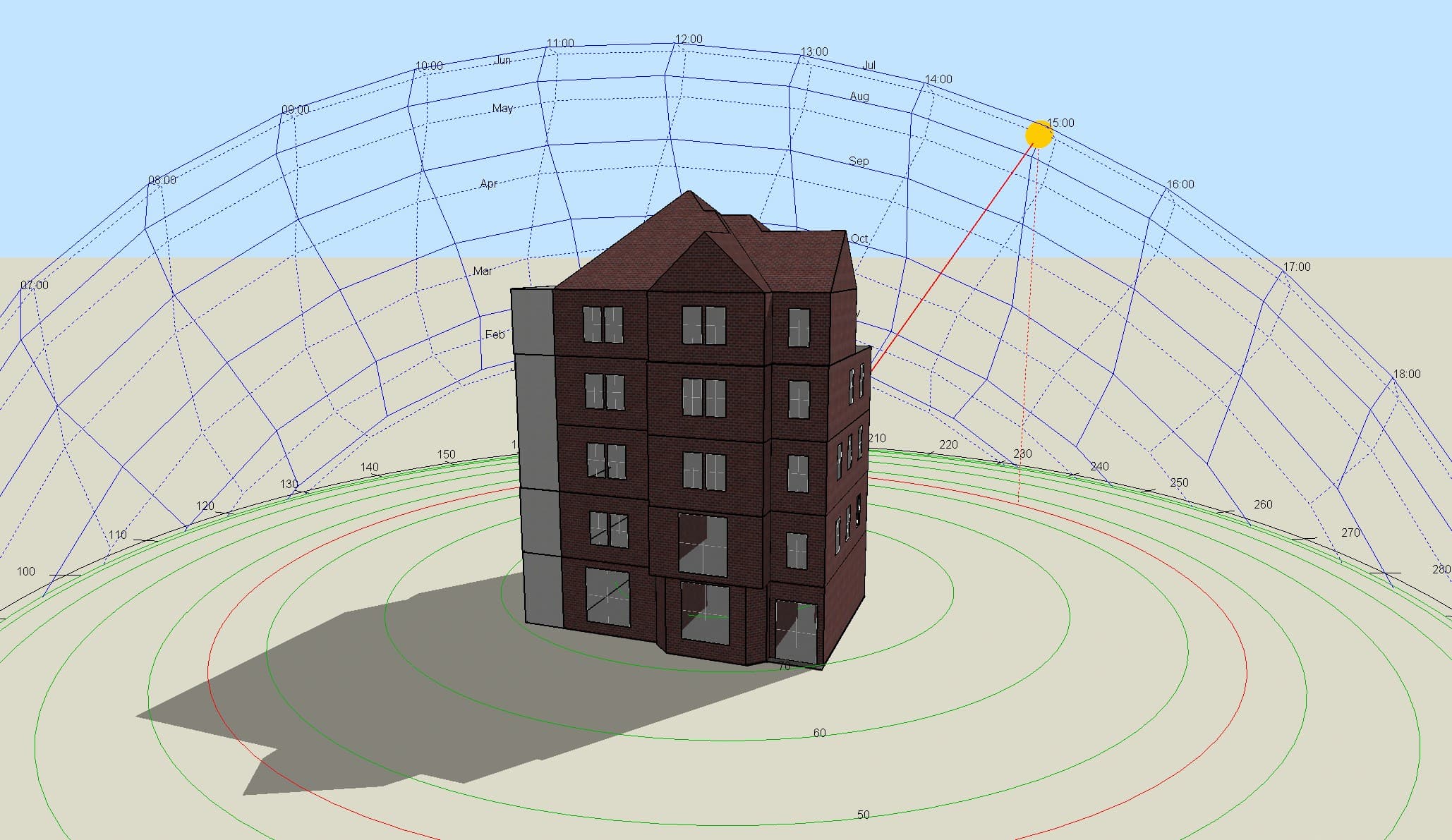

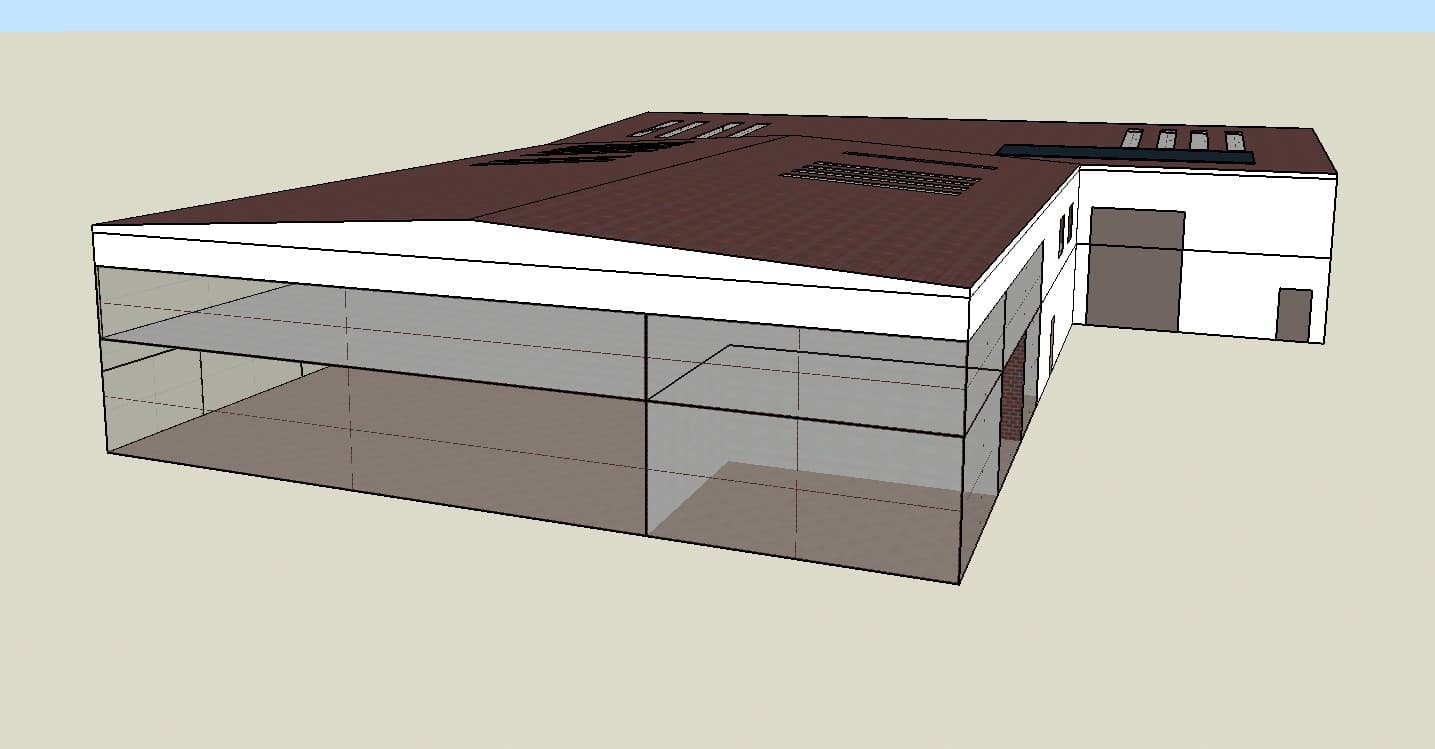

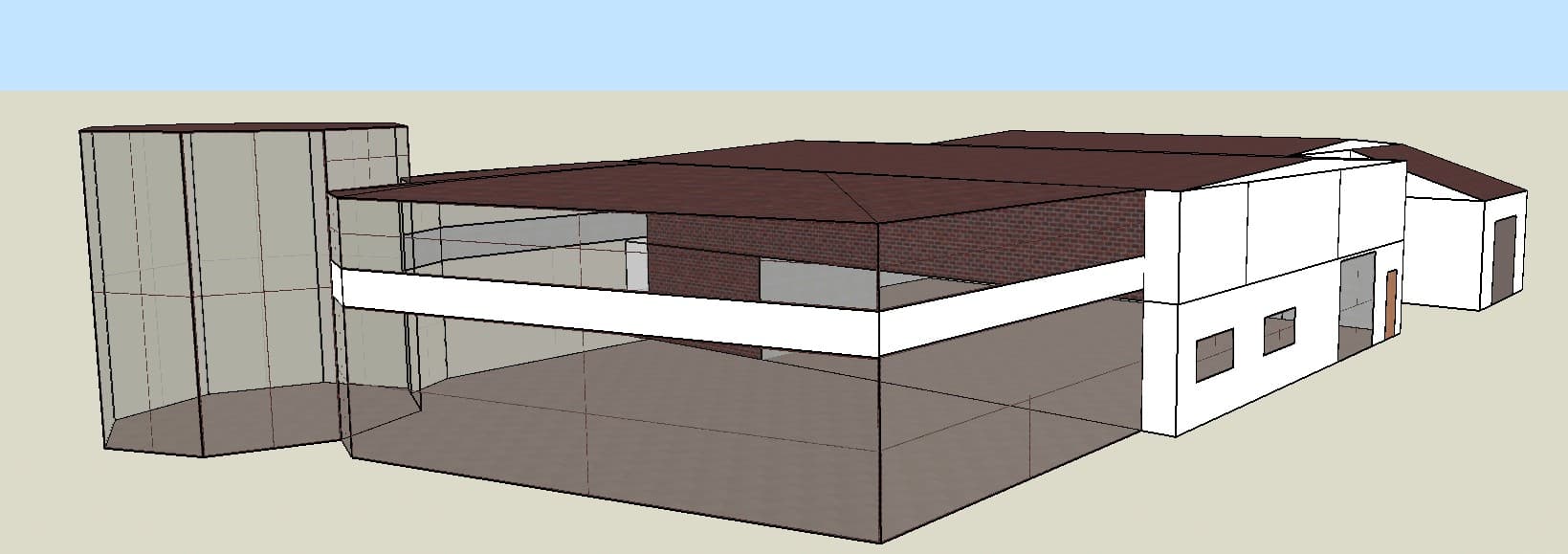

Recent work
Recent 3D Building Models jobs
Who needs one
You probably need this if...
- Owners planning refurbishment or extension
- Architects needing accurate as-built drawings
- Agents producing IPMS-compliant lease plans
- Developers preparing planning applications
- Surveyors compiling dilapidations schedules
- Energy assessors needing geometry for SBEM
How Axe Energy works
1
Get an instant quote
Pick your service, enter your floor area, and see a fixed price in 60 seconds. Or call 07429 040520.
2
Book in seconds
Pay securely online or over the phone. We confirm your slot the same day, often within the hour.
3
Certified in 48 hours
We'll contact you to schedule our visit, then complete your order as soon as possible.
Why choose us?
From booking to lodgement, we make commercial energy compliance the easiest job on your list.
- Fully accredited assessors
- Next day appointments
- Fixed pricing — pay on completion
- Rated 5.0 on Google
Rated 5.0 on
Over 1,000 commercial EPCs delivered across London. Read what landlords, agents, and facilities managers say about working with us.
★★★★★
Mr Ricky Kamboj recently visited our premises for EPC. Great service, very polite. Definitely recommend. Nicely explained and quick respond.
Dry Cleaners Kenton
North-West London
★★★★★
Very professional and efficient service. Kept me fully appraised and delivered ahead of expectations.
Julian Curtis
Verified Google review
Accredited By
Regulated by
- RICS Measured Surveys Professional Statement
- IPMS
- NIA GIA
- BIM Level 2
- ISO 19650
Frequently Asked Questions
GIA (Gross Internal Area) measures to the internal face of external walls. NIA (Net Internal Area) excludes circulation, columns, plant and toilets, and is the traditional UK office letting metric. IPMS (International Property Measurement Standards) is the newer global standard, with IPMS 3 being the closest equivalent to NIA for offices. Many modern leases reference both.
